The height-adjustable bed insert - comfort and care in your existing bed

Lippe range

The height-adjustable bed insert - comfort and care in your existing bed

Lippe range

Model facts

Bed inserts from the Lippe range are easy to insert into an existing bed frame and offer all the benefits of an electrically adjustable care bed.

Height adjustment range 29 - 74 cm
4-section mattress base
Selectively lockable handset
Cost-saving 24-volt drive system

Model variants

Lippe IV

The flexible bed insert

Lippe IV washable

Optimum hygiene

Lippe 120/140

More space and comfort

Short information

Lippe IV

Mattress base widths from 80, 90 or 100 cm, lengths of 190 or 200 cm
Mattress held securely by 5th mattress retainer bar
Safe working load 200 kg

External dimensions / height adjustment range

Short information

Lippe IV washable

Designed for mechanical treatment in a washing system
Cathodic dip coating against corrosion
Supports and protects medical retailer personnel

External dimensions / height adjustment range

Short information

Lippe 120/140

Mattress base dimensions 120 x 200, 140 x 200 cm
Optional 20 cm bed extension
High safe working load of 250 kg

External dimensions / height adjustment range

The advantages for you

HOMELIKE COMFORT - Thanks to their space-saving chassis, all Lippe models fit into virtually any existing bed and usually remain invisible, and thus do not detract from the familiar appearance of the bedroom.

24-VOLT SYSTEM - Benefit from greater safety and up to 93% lower power consumption.

ACCESSORIES - Adaptable safety sides or a stand-up aid promote extra protection and mobility.

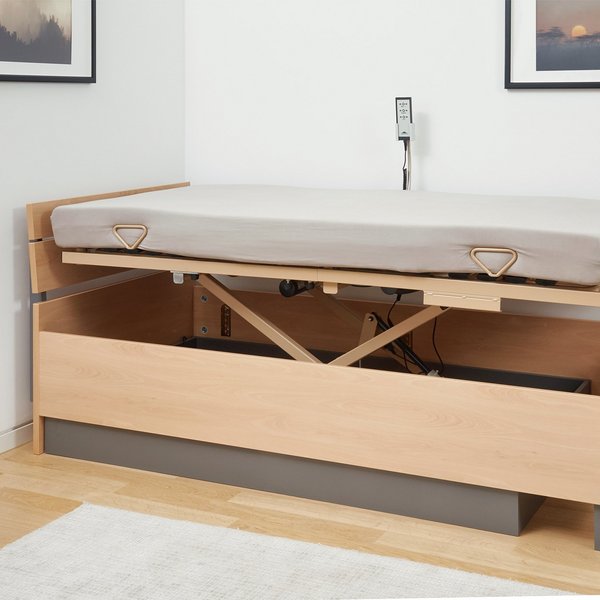

The Lippe IV bed insert is easy to fit into almost every existing bed frame.

Optionale Aufstehhilfe für den Betteinsatz Lippe IV

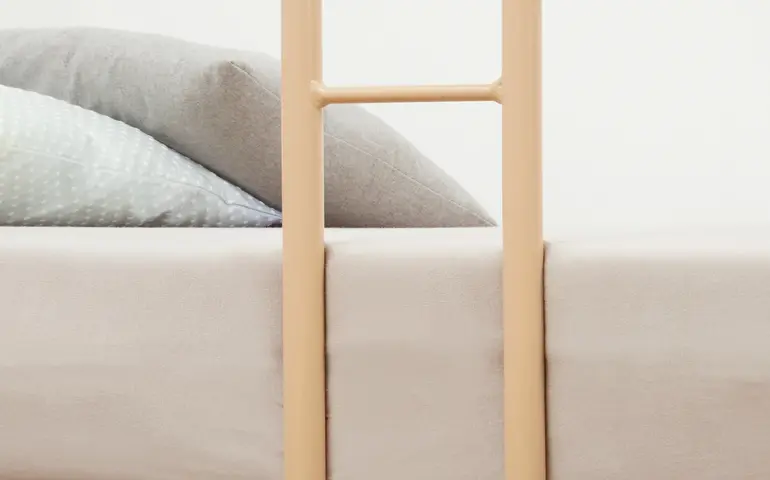

The optional aid to standing up promotes residents’ mobility.

Standfüße mit Bodenausgleichsschrauben für den Betteinsatz Lippe IV

Feet with floor-levelling screws ensure excellent stability.

Optionale adaptierbare Standfüße für den Betteinsatz Lippe IV

Optional adjustable feet make it possible to raise the bed insert by up to 7 cm.

With its wide range of mattress base dimensions, the Lippe 120/140 it is particularly roomy and comfortable.

Selektiv sperrbarer Handschalter für den Betteinsatz Lippe 120/140

Lippe bed inserts can be operated easily and intuitively using the handset with its selectively lockable features.

Optionale Aufstehhilfe für den Betteinsatz Lippe 120/140

The optional mobilisation aid for the Lippe 120/140 helps the resident to get out of bed.

Optionaler Aufrichter für den Betteinsatz Lippe 120/140

The optional lifting pole helps the resident to get comfortably positioned in the bed.

Optionale Bettverlängerung für den Betteinsatz Lippe 120/140

A 20-cm bed extension is available for the Lippe 120/140.

Bodenausgleichsschrauben des Betteinsatzes Lippe 120/140

Floor-levelling screws and fixing straps for a stable stance of the Lippe 120/140.

Kombination aus Betteinsatz Lippe IV und Bettumbau Relax

When in place in the Relax bed frame, the Lippe IV normally remains invisible.

Wohnliche Kombination aus Lippe und Relax

Virtually every Lippe model can be combined with the attractive Relax bed frame.

Lager- und Transporthilfe des Betteinsatzes Lippe IV waschbar

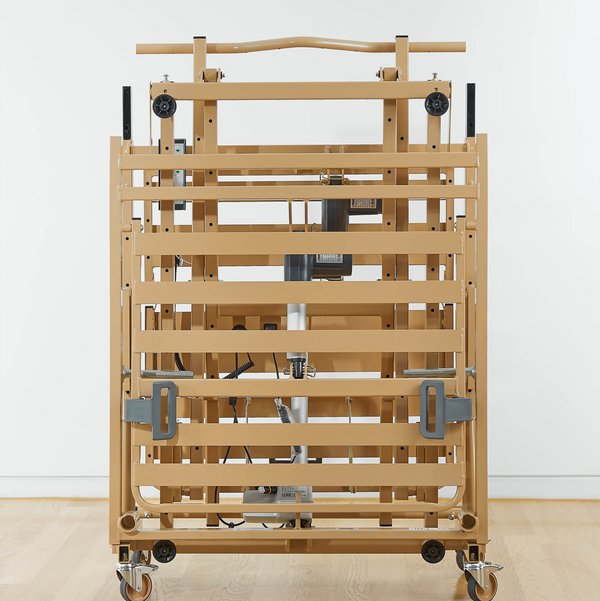

The machine-washable version of the Lippe IV is transferred to the wash cell on a storage and transport aid.

Lippe IV waschbar für maschinelle Aufbereitung

The Lippe IV washable is designed for automated reprocessing and offers optimal hygiene.

Wohnliche Kombination aus Betteinsatz Lippe IV waschbar und Betteinsatz Relax

The Lippe IV washable bed insert fits into the attractive Relax bed frame.

Optionaler Aufrichter für den Betteinsatz Lippe IV waschbar

The optional lifting pole with the triangular handle helps the resident to get comfortably positioned in the bed.

Großer Höhenverstellbereich des Betteinsatzes Lippe IV waschbar

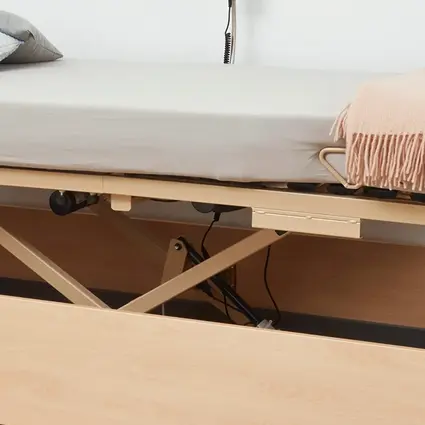

With its large height adjustment range of 29 to 74 cm, the Lippe IV washable helps to prevent falls.

Niedrige Tiefposition des Betteinsatzes Lippe IV waschbar

The lowest position of only 29 cm of the Lippe IV washable protects against falls without the use of liberty-depriving measures.

Großer Höhenverstellbereich des Betteinsatzes Lippe 120/140

Its large height adjustment range of 29 to 74 cm ensures that the Lippe 120/140 is always in the ideal position.

24-Volt-Antriebssystem für die Lippe-Betteinsätze

The safe, energy-saving 24-volt drive system produces a safety extra-low voltage directly at the socket.

Optionale Verbreiterungsschienen für den Betteinsatz Lippe IV

With optional widening rails that add 5 cm per side to the Lippe IV, the mattress base of the Lippe IV can be widened on each side.

The Lippe IV bed insert is easy to fit into almost every existing bed frame.

The optional aid to standing up promotes residents’ mobility.

Feet with floor-levelling screws ensure excellent stability.

Optional adjustable feet make it possible to raise the bed insert by up to 7 cm.

With its wide range of mattress base dimensions, the Lippe 120/140 it is particularly roomy and comfortable.

Lippe bed inserts can be operated easily and intuitively using the handset with its selectively lockable features.

The optional mobilisation aid for the Lippe 120/140 helps the resident to get out of bed.

The optional lifting pole helps the resident to get comfortably positioned in the bed.

A 20-cm bed extension is available for the Lippe 120/140.

Floor-levelling screws and fixing straps for a stable stance of the Lippe 120/140.

When in place in the Relax bed frame, the Lippe IV normally remains invisible.

Virtually every Lippe model can be combined with the attractive Relax bed frame.

The machine-washable version of the Lippe IV is transferred to the wash cell on a storage and transport aid.

The Lippe IV washable is designed for automated reprocessing and offers optimal hygiene.

The Lippe IV washable bed insert fits into the attractive Relax bed frame.

The optional lifting pole with the triangular handle helps the resident to get comfortably positioned in the bed.

With its large height adjustment range of 29 to 74 cm, the Lippe IV washable helps to prevent falls.

The lowest position of only 29 cm of the Lippe IV washable protects against falls without the use of liberty-depriving measures.

Its large height adjustment range of 29 to 74 cm ensures that the Lippe 120/140 is always in the ideal position.

The safe, energy-saving 24-volt drive system produces a safety extra-low voltage directly at the socket.

With optional widening rails that add 5 cm per side to the Lippe IV, the mattress base of the Lippe IV can be widened on each side.

Technical specifications

The following overview presents the technical data and equipment options for this model of bed. With a tailor-made configuration and visual design, and with suitable accessories, you can plan a bed that precisely matches your requirements and your home furnishings. Your area sales manager will be happy to inform you about all the options.

	Lippe	Lippe wash	Lippe 120 / 140
External dimensions in cm	85 x 185 / 85 x 195 / 95 x 185 / 95 x 195 / 75 x 185 / 75 x 195	85 x 185 / 85 x 195	115 x 195 / 135 x 195
Mattress base in cm (mattress dimensions) in cm	100 x 190 / 90 x 190 / 90 x 200 / 100 x 200	90 x 200	140 x 200, 120 x 200
Safe working load in kg	200	200	250
Maximum weight of patient in kg ca.	160	160	210

* = Not available in all colors
= Standard
= Optional
= Not available

	Lippe	Lippe wash	Lippe 120 / 140
Tilting to reverse-Trendelenburg position in °	-	-	-
Backrest angle in °	0 - 72	0 - 72	0 - 73
Thigh rest angle in ° ca.	0 - 31	0 - 31	0 - 31
Angle thigh rest - lower leg rest	128 - 180	128 - 180	128 - 180
Lower leg rest angle (with a ratchet) in °	0 - 21	0 - 21	0 - 21
Adjustment range of lower leg rest in cm	14	14	17
Fowler position angle in °	-	-	-
